I will teach you 3 patterns that will immediately improve the reliability of your API calls.

Everyone seems to think only about the happy path when integrating with third-party APIs. But what about failures? Unreliable network conditions, timeouts, server overload, third-party APIs may not be reliable and are out of your control. These are all real problems that can cost you money, data integrity, and user trust.

TL;DR

If you remember one thing from this post:

  1. Make your APIs idempotent Use idempotency keys to prevent duplicate processing
  2. Use state machines Track transaction lifecycle with clear states and transitions
  3. Optimistic locks are your friend Use conditional state updates to prevent race conditions

The three-step process:

  1. DB transaction: Save initial state Create transaction record with all related tables in a single database transaction
  2. API call Make the external API call (only after initial state is persisted)
  3. DB transaction: Save result Update transaction state and all related tables in a single database transaction

Always have a recovery mechanism in mind Implement a scheduler/job that periodically retries stuck transactions and moves them to final states.

Naive Approach

Let’s start with this seemingly innocent diagram. Can you spot what’s wrong with it?

    sequenceDiagram
  autonumber
  participant FE as Frontend
  participant BE as Backend
  participant DB as DB
  participant API as 3rd Party API

  activate FE
  FE->>BE: POST /transaction (payload)
  activate BE
  BE->> API: POST /bank/transaction
  activate API
  API-->>BE: 200 OK (result)
  deactivate API
  BE->>DB: INSERT transaction + result
  activate DB
  DB-->>BE: write OK
  deactivate DB
  BE-->>FE: 201 Created (transactionId, status)
  deactivate BE
  deactivate FE

The request goes from the frontend to the backend, then to the bank API, then to the database, and finally back to the frontend. Nothing can go wrong here… right?

What Can Go Wrong?

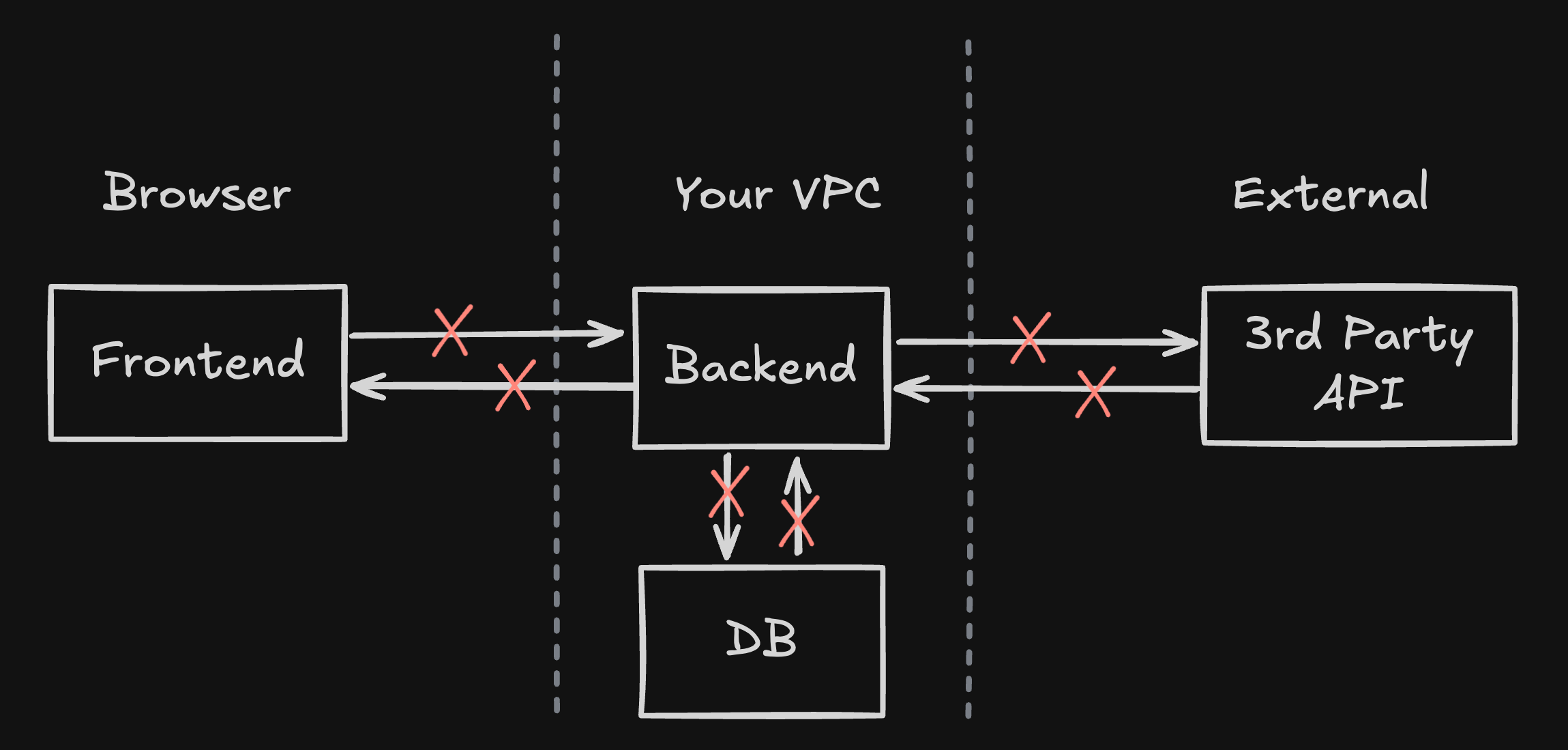

Let me walk you through the points of failure in this flow:

Reliable Api Calls

Every API request and response is a potential point of failure from requests to your own backend, to third-party APIs, and even to your database. Each network hop, each service call, and each database operation can fail in ways that leave your system in an inconsistent state.

Network Timeouts

  • FE → BE timeout: User’s request times out, did the backend process the request?
  • BE → API timeout: Backend calls the bank API, but the connection times out. Did the transaction go through?

API Failures

  • 5xx errors: The bank API returns 500 Internal Server Error. Was the transaction processed? Unclear.

Database Failures

  • Write fails after API succeeds: The bank API processed the transaction, but our database write fails. We have no record of the transaction, but the money moved.

Duplicate Requests

  • User double-click: User clicks “Send” twice, both requests go through.
  • Network retry: Frontend retries the request automatically after a timeout

Partial Completion

  • API succeeds, DB fails: Money transferred, but no record saved

Race Conditions

  • Concurrent identical requests: Two requests with the same payload arrive at the same time, both get processed

Crash Scenarios

  • Backend dies after API call: Bank processed the transaction, backend crashed before saving to DB. On restart, we have no record.

The scary part? All of these failures can lead to duplicate transactions or lost data. Without proper handling, a user might get charged twice, or a transaction might disappear into the void.

The Retry Problem

The network is unreliable. Packets drop, connections reset, servers get overloaded. When these failures happen:

  • Servers return 5xx errors.
  • Timeouts occur at connection, read, or write levels
  • Clients may retry requests

Understanding Idempotency

According to REST principles, an idempotent operation is one that can be called multiple times with the same result. In other words, calling it once or calling it 10 times should produce the same outcome.

HTTP methods and idempotency:

  • GET, PUT, DELETE, HEAD, OPTIONS: Idempotent by design
  • PATCH: Not guaranteed idempotent (depends on semantics)
  • POST: Not idempotent by default; can be made idempotent via server design (e.g., upsert-by-key) or idempotency keys

Why POST is tricky: By default POST creates new resources, so repeated POSTs can create duplicates. This is unacceptable for financial operations.

What we need: Make POSTs safe using idempotency keys (plus server-side upsert semantics where appropriate) so multiple calls with the same key return the same result.

Pattern 1: Idempotency Keys

The solution is simple: attach a unique identifier to each request. If the server has seen this identifier before, it returns the cached result instead of processing again.

Two Approaches: Server-Created vs Client-Created

There are two main approaches to handling idempotency:

Server-Created Idempotency Keys

With this approach, the client first calls the server to create a transaction record:

  1. Client calls server (non-idempotent call to create transaction)
  2. Server creates transaction record with ID and initial state
    • (e.g., POST /transaction creates a record with state pending)
  3. Server returns transaction ID to client
  4. Client confirms/executes using an idempotent call with the transaction ID
    • (e.g. PUT /transaction/{transactionId}/confirm will move it from pending to processing)
    sequenceDiagram
  autonumber
  participant FE as Frontend
  participant BE as Backend

  FE->>BE: POST /transaction (payload)
  activate BE
  BE->>BE: Create transaction record<br/>(state: pending)
  BE-->>FE: 201 Created (transactionId)
  deactivate BE

  FE->>BE: PUT /transaction/{transactionId}/confirm
  activate BE
  BE->>BE: Update state: pending → processing <br/> begins processing
  BE-->>FE: 200 OK (result)
  deactivate BE

Pros:

  • Server controls transaction lifecycle
  • Can validate before committing
  • Clear separation of concerns

Cons:

  • Two-step process requires additional round-trip
  • More complex client logic
  • Duplicate requests will create transaction records, but those will never be processed. (may need cleanup/expiry logic)

Client-Created Idempotency

With this approach, the client generates the idempotency key:

  1. Client generates idempotency key and sends with request
  2. Server attempts an atomic insert under a unique constraint (no prior read)
    • If the insert succeeds: create the transaction and process it
    • If the insert conflicts: fetch and return the existing transaction/result
    sequenceDiagram
  autonumber
  participant FE as Frontend
  participant BE as Backend

  Note over FE: Generate idempotency key
  FE->>BE: POST /transaction<br/>Idempotency-Key: abc-123

  activate BE
  BE->>BE: Atomic insert by unique key (if conflict, fetch existing)

  alt Insert succeeded
    BE->>BE: Create transaction<br/> and process it
    BE-->>FE: 201 Created (result)
  else Insert conflicted (constraint error)
    BE->>BE: Retrieve cached/saved transaction
    BE-->>FE: 200 OK (cached result)
  end
  deactivate BE

Pros:

  • Single round-trip
  • Simpler client flow
  • Immediate execution

Cons:

  • Client responsible for uniqueness
  • Less server control over transaction creation

UUID Uniqueness: Is It Good Enough?

When using client-created idempotency, you need a way to generate unique keys. Random UUIDs (v4) are the most common choice, though UUIDs (v7) are a good alternative.

UUID v4 (Random):

  • 128 bits of randomness
  • Collision probability is astronomically low
  • No inherent ordering or timestamp information

UUID v7 (Time-Ordered):

  • Includes a timestamp component (48 bits) plus randomness (74 bits)
  • Sortable by creation time (useful for database indexing)
  • Better for debugging/logging (you can see when the key was created)
  • Still maintains high uniqueness with collision probability similar to v4

Collision probability: With v4/v7, collisions are negligible for practical scales.

Choose v7 if you want time-ordering; otherwise v4 is perfectly fine.

Is it unique enough? Yes, for virtually all use cases. The theoretical edge case where multiple clients generate identical UUIDs is so rare that it’s not a practical concern.

Alternatives to Random UUIDs

For special requirements, you might want deterministic idempotency keys:

Format: module + client_id + request_hash

  • Module identifier: e.g., “payment”, “transfer”, “purchase”
  • Client ID: Unique per client/user
  • Request hash: Deterministic hash of the request payload

Example: payment_user123_a3f5b2c1d4e6f7g8h9i0j1k2l3m4n5o6p7

Benefits:

  • Predictable and debuggable (you can see what operation it represents)
  • Can detect duplicate attempts from the same client with the same payload
  • Easier to trace in logs

Trade-offs:

  • Longer keys (storage considerations)
  • Requires careful design to avoid collisions (different clients with same payload would collide)
  • Must ensure client_id is unique and secure

Hybrid approach: Use deterministic keys for client retries, random UUIDs for unique operations.

Recommendation: Random UUIDs are fine for most cases. Use deterministic keys when you need to detect exact duplicate requests from the same client.

Implementation Details

  • Storage: Idempotency key → result mapping in database/cache (indexed for fast lookup)
  • Response handling: Return the same result for the same key
  • TTL considerations: How long to store keys (typically 24-48 hours)

Atomic creation (concurrency-safe) example:

-- Unique index on (idempotency_key)
INSERT INTO transactions (idempotency_key, state, created_at)
VALUES ($1, 'pending', NOW())
ON CONFLICT (idempotency_key) DO NOTHING
RETURNING id;
-- If no row returned → SELECT existing row by idempotency_key

Pattern 2: State Machines

To properly handle the transaction lifecycle, we need to track state. A state machine ensures we know exactly where each transaction is in the process.

What to Save in the Database

Your transaction record should include:

  • id: Primary key (opaque, should not be exposed to the client)
  • public_uid/idempotency_key: Key from the client (if using client-created approach)
  • state: Current state of the transaction
  • version: For optimistic locking (we’ll cover this next)
  • external_public_uid/external_idempotency_key: Key used when calling external API (backend-created, persisted before the external call)
  • result: Result + metadata from external API
  • error_details: Error information if failed
  • created_at, updated_at: Timestamps

Database Transaction Strategy

When implementing API calls with state management, it’s critical to use proper database transaction boundaries to ensure data consistency. The process should follow these three steps:

  1. Save initial state in database (single database transaction): Create the transaction record with all necessary tables and initial state in a single database transaction. This ensures atomicity, if any part of the initial state creation fails, the entire operation rolls back, leaving your database in a consistent state.

    Example: If you need to create a transaction record and update a related table (e.g., deducting funds from an account), both operations must happen in the same transaction.

  2. Persist external idempotency key, then do API call: After the initial state is saved, persist the external idempotency key on the transaction (optionally transition to processing), then make the external API call. This enables safe replay after crashes/timeouts.

  3. Save result + new state in database (single database transaction): After receiving the API response (success or failure), update all related tables and the transaction state in a single database transaction. This includes updating the transaction record with the result, updating any related account balances, and modifying any other dependent records.

Why this matters: Without proper transaction boundaries, you risk partial updates. For example, if you update the transaction state successfully but fail to update a related account balance, your data becomes inconsistent. By wrapping all related updates in a single transaction, you ensure all-or-nothing semantics.

Implementation pattern:

BEGIN TRANSACTION;
  -- Step 1: Create initial state (all tables)
  INSERT INTO transactions (...) VALUES (...);
  UPDATE accounts SET ... WHERE ...;
  -- Commit only if all succeed
COMMIT;

-- Step 2: Make API call (outside transaction)
-- ... API call here ...

BEGIN TRANSACTION;
  -- Step 3: Update with result (all tables)
  UPDATE transactions SET state = 'completed', result = ... WHERE ...;
  UPDATE accounts SET ... WHERE ...;
  -- Commit only if all succeed
COMMIT;

This strategy ensures that your database always reflects a consistent state, even if the API call fails or the server crashes between operations.

Two Types of Idempotency Keys

You need two separate idempotency keys for different purposes:

  1. Backend Transaction Key: Tracks the transaction request on your backend (may be client-created or backend-created, depending on your approach)
  2. External API Key: Used when calling the external API (always backend-created)

Why both? They serve different retry boundaries. When a client retries the same transaction request, your backend uses the transaction key to recognize it’s a duplicate. However, when your backend needs to retry the external API call (due to a network error, timeout, etc.), it should use a separate key, either a new one each retry, or the external API may handle its own idempotency.

Example:

  • Client retries POST /transaction with transaction key abc-123 → Backend recognizes duplicate using abc-123
  • Backend calls bank API with external key xyz-789 → If the backend needs to retry the same logical operation, reuse xyz-789 when the provider supports idempotency keys. Rotating keys can create duplicates.

State Transitions

The state flow depends on which idempotency approach you’re using:

Client-Created Idempotency Key

With client-created keys, everything happens in a single request, so the state machine is simpler:

    stateDiagram-v2
    [*] --> pending: Create transaction
    pending --> completed: API success
    pending --> failed: API failure
    failed --> pending: Retry
    completed --> [*]
    failed --> [*]

State meanings:

  • pending: Record created, ready to process API call
  • completed: API call succeeded, transaction finished
  • failed: API call failed or error occurred

When to transition:

  • Create record: Set state to pending
  • After API call: Transition directly from pending to completed or failed
  • On retry: Transition from failed back to pending (then retry API call)

Server-Created Idempotency Key

With server-created keys, you have a two-step process, so you need an intermediate processing state:

    stateDiagram-v2
    [*] --> pending: First request creates transaction
    pending --> processing: Second request starts API call
    processing --> completed: API success
    processing --> failed: API failure
    failed --> processing: Retry
    completed --> [*]
    failed --> [*]

State meanings:

  • pending: Record created in first request, waiting for confirmation/execution
  • processing: Currently calling external API
  • completed: API call succeeded, transaction finished
  • failed: API call failed or error occurred

When to transition:

  • First request: Create record with state pending, return transaction ID to client
  • Second request: Transition from pending to processing before API call
  • After API call: Transition to completed or failed
  • On retry: Transition from failed back to processing

Recovery Scheduler

Transactions can get stuck in pending state due to:

  • Server crashes after creating a transaction but before calling the API
  • Network failures that prevent API call completion
  • Timeouts that leave transactions in an intermediate state

Solution: Implement a recovery scheduler (also called a “sweeper” or “cleanup job”) that periodically:

  1. Finds transactions stuck in pending state
  2. Retries processing them (with appropriate retry limits)
  3. Moves them to final states (completed or failed)

Implementation approach:

-- Find transactions stuck in pending
SELECT * FROM transactions
WHERE state = 'pending'
  AND updated_at < NOW() - INTERVAL '5 minutes'
ORDER BY created_at ASC
LIMIT 100;

Key considerations:

  • Frequency: Run every few minutes (e.g., 1-5 minutes depending on your SLA)
  • Time threshold: Only process transactions older than X minutes (e.g., 5 minutes) to avoid interfering with in-flight requests
  • Batch size: Process in batches to avoid overwhelming the system
  • Idempotency: Use the same optimistic locking mechanisms to ensure safe retries (e.g., WHERE state = 'pending')
  • Retry limits: Track retry_attempts and move to failed after max retries
  • Processing order: Process oldest transactions first (ORDER BY created_at)

State transitions for recovery:

  • pending (stuck) → process API call → completed or failed (using optimistic locking)

This ensures no transaction is left hanging indefinitely and improves overall system reliability.

Pattern 3: Optimistic Locking

When a transaction record already exists (from a previous request or retry), concurrent requests trying to update it can cause race conditions. Optimistic locking ensures only one request can successfully update and process the transaction at a time.

The Problem

Consider updating a user’s account balance when processing transactions. Two different transactions arrive concurrently:

  • Transaction A: Process $50 debit (transaction_id: txn-1)
  • Transaction B: Process $50 debit (transaction_id: txn-2). This is a different transaction!

Both should be applied, so the balance should go from $1000 → $900 (1000 - 50 - 50).

Without optimistic locking, your code might do:

-- Read balance, calculate new value, then update
SELECT balance FROM accounts WHERE user_id = 123;
-- Returns: balance = $1000

-- Later, update with calculated value (no check on current balance)
UPDATE accounts
SET balance = 950  -- calculated as 1000 - 50
WHERE user_id = 123

What happens with concurrent requests:

  1. Request A (txn-1) reads balance → $1000, calculates new balance = $950
  2. Request B (txn-2) reads balance → $1000 (before A updates), calculates new balance = $950
  3. Request A executes UPDATE → balance becomes $950 ✓ (txn-1 processed)
  4. Request B executes UPDATE → balance becomes $950 ❌ Wrong! (txn-2 overwrites, should be $900)
  5. Expected: Balance should be $900 (both transactions: 1000 - 50 - 50)
  6. Actual: Balance is $950 → Lost $50! Transaction B’s debit was lost.

The problem: The WHERE clause doesn’t verify the balance hasn’t changed since you read it. Both requests see the same initial value ($1000) and both updates succeed, causing the second transaction to overwrite the first instead of being applied on top. This same race condition occurs with state transitions (pending → completed, failed → pending) when multiple requests try to update the same record.

Note: Record creation is protected by a unique constraint on idempotency_key (database-level pessimistic locking). Optimistic locking is needed for updating existing records when multiple requests try to change the state concurrently.

The Optimistic Locking Pattern

These solutions follow the same pattern:

  1. Optimistically attempt the update with a conditional WHERE clause
  2. Check affected rows count:
    • 0 rows updated → Conflict detected, rollback/fail the transaction
    • 1 row updated → Success, continue processing
  3. The WHERE clause ensures only one request can proceed if they arrive simultaneously

This is “optimistic” because you assume success and check afterwards. If another request beat you, you detect the conflict and abort.

Solution 1: Version Column

Add a version column to your table (integer, starts at 0 or 1):

-- Example: Update balance with version check
UPDATE accounts
SET balance = ?, version = version + 1
WHERE user_id = ? AND version = ?

How it works:

  1. Read account with current version (e.g., balance = $1000, version = 5)
  2. Calculate new balance (e.g., $1000 - $50 = $950)
  3. Optimistically attempt update: only succeeds if version still matches
  4. If version changed → WHERE clause fails → 0 rows updated → conflict detected → rollback (another request modified it)
  5. If version matches → 1 row updated → success → continue

Also works for state transitions:

-- Example: Update transaction state
UPDATE transactions
SET state = 'completed', result = ?, version = version + 1
WHERE id = ? AND version = ?

Use on all updates: Apply this pattern to any update where concurrent modifications must be prevented (balance updates, state transitions, etc.)

Pros:

  • Flexible, can update any field
  • Good for complex updates

Cons:

  • Requires version check in all update queries

Solution 2: Conditional State Updates

Use the WHERE clause to ensure state hasn’t changed:

-- Example: Update from pending to completed
UPDATE transactions
SET state = 'completed', result = ?
WHERE idempotency_key = ? AND state = 'pending'

-- Example: Retry from failed to pending
UPDATE transactions
SET state = 'pending'
WHERE idempotency_key = ? AND state = 'failed'

-- Example: Mark as failed
UPDATE transactions
SET state = 'failed', error = ?
WHERE idempotency_key = ? AND state = 'pending'

How it works:

  1. Optimistically attempt update: only succeeds if current state matches expected state
  2. If state changed → WHERE clause fails → 0 rows updated → conflict detected → rollback
  3. If state matches → 1 row updated → success → continue

Use on all updates: Apply conditional state checks to every state transition. The WHERE clause ensures atomic state machine transitions.

Pros:

  • Simpler, no version column needed
  • Atomic by nature
  • Perfect for state machine transitions

Cons:

  • Only works for state transitions
  • Less flexible for other updates

Which to Use?

For state machines: Use conditional state updates (recommended). It’s simpler and perfectly suited for atomic state transitions.

For complex updates: Use version column when you need to update multiple fields and detect conflicts on any change.

Complete Flow Example

Let’s see all three patterns working together:

    sequenceDiagram
  autonumber
  participant FE as Frontend
  participant BE as Backend
  participant DB as DB
  participant API as 3rd Party API

  Note over FE: Generate idempotency key
  FE->>BE: POST /transaction<br/>Idempotency-Key: abc-123

  activate BE
  BE->>DB: INSERT transaction (state: pending, key: abc-123)

  alt Row returned (insert ok)
    DB-->>BE: Inserted
    Note over BE: Generate & persist API idempotency key (reuse on retries)
    BE->>API: POST /bank/transaction<br/>Idempotency-Key: xyz-789
    activate API

    alt API success
      API-->>BE: 200 OK (transaction_id: txn-456)
      Note over BE: Optimistic lock:<br/>WHERE state = 'pending'
      BE->>DB: UPDATE state = 'completed',<br/>result = {...}<br/>WHERE key = 'abc-123' AND state = 'pending'
      DB-->>BE: 1 row updated (success)
      BE-->>FE: 201 Created (transactionId, status)
    else API failure
      API-->>BE: 500 Internal Server Error
      Note over BE: Optimistic lock:<br/>WHERE state = 'pending'
      BE->>DB: UPDATE state = 'failed',<br/>error = "..."<br/>WHERE key = 'abc-123' AND state = 'pending'
      DB-->>BE: 1 row updated (success)
      BE-->>FE: 500 Error
    end
    deactivate API

  else No row returned (conflict)
    BE->>DB: SELECT state, result WHERE key = 'abc-123'
    DB-->>BE: state: 'completed', result: {...}
    BE-->>FE: 200 OK (cached result)
  end

  deactivate BE

Error recovery scenarios:

  • Network timeout: Client retries with same idempotency key → backend returns cached result
  • API 5xx error: Transaction marked as failed, can retry later (might need manual intervention or retry job)
  • Duplicate request: Same idempotency key arrives twice → second request returns existing result

Best Practices

  1. Idempotency key format:

    • Use UUID v4 (random) or UUID v7 (time-ordered) for most cases (high uniqueness)
    • UUID v7 is better if you need sortable keys or timestamp information for debugging
    • Use deterministic keys (module + client_id + hash) when you need to detect exact duplicates

  2. Header placement:

    • Use Idempotency-Key header (standard practice, defined in some API specs)
    • Avoid putting it in the request body

  3. Storage strategy:

    • Index idempotency keys for fast lookup
    • Set reasonable TTL (24-48 hours typically)
    • Consider cache layer for hot lookups

  4. Error handling:

    • If key lookup fails (database error), return 500 and log
    • If duplicate key detected, return cached result (don’t treat as error)

  5. State machine design:

    • Keep it simple with clear, descriptive state names
    • Make transitions explicit and atomic
    • Document valid state transitions

  6. Optimistic locking:

    • Use conditional state updates for state machine transitions (simpler, atomic)
    • Use version column when updating multiple fields independently

  7. Server vs Client created:

    • Use client-created for simple flows (single round-trip)
    • Use server-created when you need validation/preprocessing before execution

  8. Deterministic vs Random:

    • Random UUIDs (v4 or v7) for general use (simpler, sufficient uniqueness)
    • UUID v7 preferred if you need time-ordering or better database indexing performance
    • Deterministic keys when you need to detect exact duplicate attempts from same client

  9. Database transaction boundaries:

    • Always save initial state in a single database transaction (create transaction record + update all related tables atomically)
    • Make the API call only after initial state is successfully persisted
    • Save result + updated state in a single database transaction (update transaction record + all related tables atomically)
    • This ensures all-or-nothing semantics and prevents partial updates that lead to data inconsistency

  10. Retry policy and deadlines:

  • Use exponential backoff with jitter and a maximum retry budget
  • Propagate and enforce end-to-end timeouts/deadlines across internal and external calls
  1. Replay responses:
  • Return the same body and a stable status (200, or 201 if you always return 201)
  • Optionally add a replay-indicator header (e.g., Idempotent-Replay: true)

Conclusion

By implementing these 3 patterns, you’ll dramatically improve the reliability of your API integrations:

  1. Idempotency Keys: Prevent duplicate processing by using unique identifiers
  2. State Machines: Track transaction lifecycle with clear states and transitions
  3. Optimistic Locking: Prevent race conditions with atomic state updates

These patterns work together to handle the reality of distributed systems: networks fail, servers crash, clients retry. Instead of hoping these failures don’t happen, we design for them.

The next time you integrate with a 3rd party API, ask yourself:

  • What happens if the network times out?
  • What if the client retries?
  • What if two requests arrive simultaneously?
  • What if the server crashes mid-process?

With these patterns in place, you’ll have answers to all of these questions.

Going Further: Asynchronous Processing

Instead of making third-party API calls synchronously (inline), consider processing them asynchronously.

When a client submits a transaction request, return a 200 OK immediately after storing the transaction in your database. The client gets a result right away and doesn’t need to wait for the third-party API response. Then execute the actual third-party API call later using a scheduler or by publishing the transaction to a message queue like Kafka.

    sequenceDiagram
  autonumber
  participant Client
  participant Backend
  participant DB as Database
  participant Queue as Message Queue<br/>(Kafka/Scheduler)
  participant API as 3rd Party API

  activate Client
  Client->>Backend: POST /transaction (payload)
  activate Backend
  Backend->>DB: INSERT transaction (status: PENDING)
  activate DB
  DB-->>Backend: write OK
  deactivate DB
  Backend->>Queue: Publish transaction event
  activate Queue
  Backend-->>Client: 200 OK (transactionId, status: PENDING)
  deactivate Backend
  deactivate Client

  Note over Queue,Backend: Asynchronous processing

  Queue->>Backend: Consume transaction event
  activate Backend
  Backend->>DB: Read transaction details
  activate DB
  DB-->>Backend: transaction data
  deactivate DB
  Backend->>API: POST /bank/transaction
  activate API
  API-->>Backend: 200 OK (result)
  deactivate API
  Backend->>DB: UPDATE transaction (status: COMPLETED, result)
  activate DB
  DB-->>Backend: write OK
  deactivate DB
  deactivate Backend
  deactivate Queue

This approach decouples your API from external dependencies and provides better resilience.

More patterns are coming as we dive into asynchronous processing - stay tuned.
